Factors From Differential Elements to Finite Areas

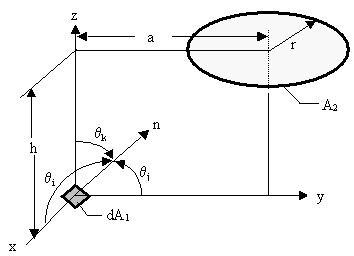

B-17: From differential element at coordinate system origin tilted at arbitrary angle to a disk bisected by the y-z plane. Plane of element does not intersect disk. (Corrected from original reference.)

Reference: Hollands

Definitions: H=h/a; R=r/a; Z=1+H²+R²; P=(Z²-4R²)^1/2
Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.

SECTION B Factors From Differential Elements to Finite Areas

B-17: From differential element at coordinate system origin tilted at arbitrary angle to a disk bisected by the y-z plane. Plane of element does not intersect disk. (Corrected from original reference.)
