SECTION C
Factors From Differential Elements to Finite Areas

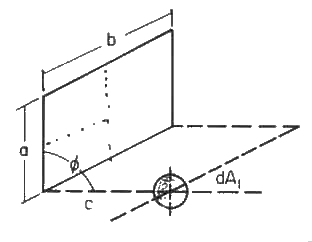

C-122A: Sphere to plane rectangle. Sphere lies on corner of adjacent rectangle with common side and intersecting A₂ at angle ø. (Sphere radius < c cosø) (Corrected from original text, and noting that result applies to sphere of finite diameter.)

Reference: Hamilton and Morgan, 1956

Definitions: A=a/c; B=b/c

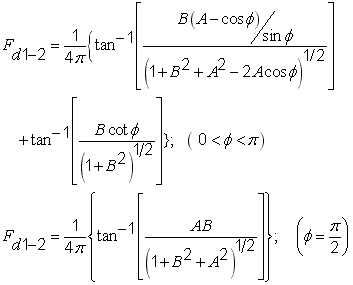

Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.

SECTION CFactors From Differential Elements to Finite Areas

C-122A: Sphere to plane rectangle. Sphere lies on corner of adjacent rectangle with common side and intersecting A2 at angle ø. (Sphere radius < c cosø) (Corrected from original text, and noting that result applies to sphere of finite diameter.)

SECTION C
Factors From Differential Elements to Finite Areas

C-122A: Sphere to plane rectangle. Sphere lies on corner of adjacent rectangle with common side and intersecting A₂ at angle ø. (Sphere radius < c cosø) (Corrected from original text, and noting that result applies to sphere of finite diameter.)
