SECTION C
Factors From Finite Areas to Finite Areas

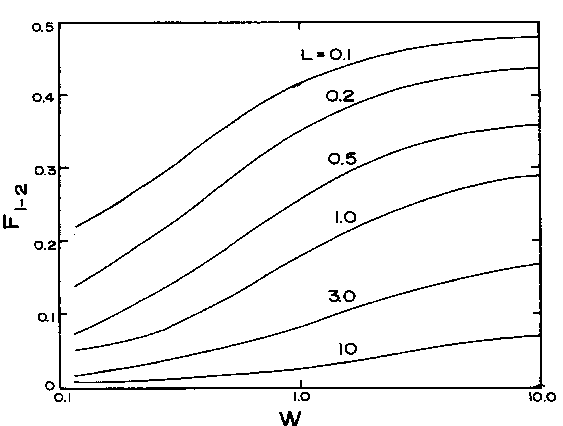

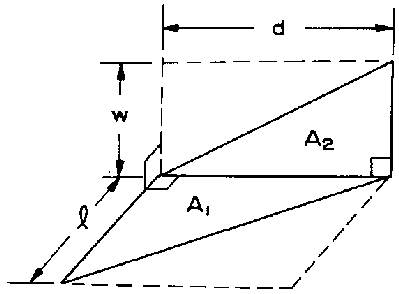

C-24: Right triangle to perpendicular right triangle with common edge; apexes at opposite ends.

Reference: Sauer; Camaraza-Medina et al. (2023); Camaraza-Medina

Definitions: L = l/d; W = w/d

Reprinted by permission. American Society of Heating, Refrigerating, and Air-Conditioning Engineers, Inc.
