Radiation Configuration Factors C-12.html

SECTION C
Factors From Finite Areas to Finite Areas

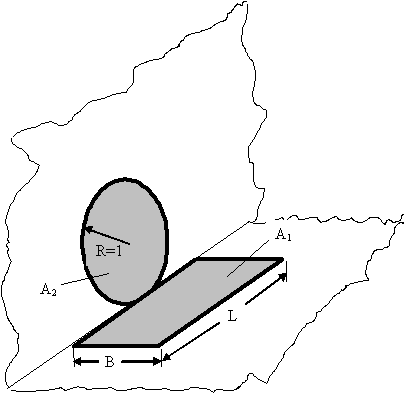

C-15a: Rectangle to disk in perpendicular plane. Disk is symmetrically centered with rectangle, and touches rectangle center

Reference: Abishek et al.

Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.

SECTION CFactors From Finite Areas to Finite Areas

C-15a: Rectangle to disk in perpendicular plane. Disk is symmetrically centered with rectangle, and touches rectangle center

SECTION C
Factors From Finite Areas to Finite Areas
