SECTION C
Factors From Finite Areas to Finite Areas

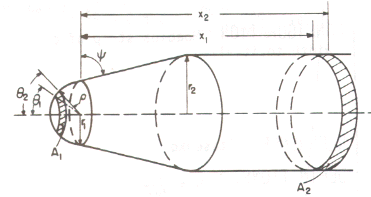

C-145: Ring area on inside of sphere to ring on interior of cylinder attached to sphere by a conical frustum.

Reference: Stevenson and Grafton

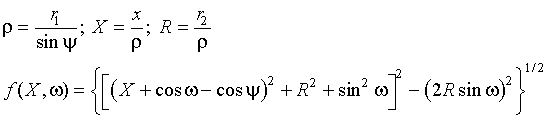

Definitions:

Governing Equation:

To download a copy of this equation in MS Word 97 Format, click HERE.
