SECTION C

Factors from Finite Areas to Finite Areas

---

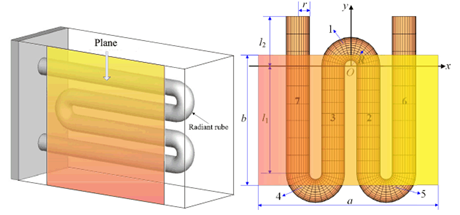

C-13c: Rectangle to W-shaped tube in parallel plane

Reference: He et al., 2018

Results of Monte Carlo analysis:

Segment	s, mm		a, mm	b, mm	F12	Segment	s, mm	a, mm	b, mm	F12
1	450	1320		900	0.5474	18	450	1320	1750	0.5257
2	450	1320		950	0.5465	19	450	1320	1800	0.5217
3	450	1320		1000	0.5457	20	450	1320	1850	0.5203
4	450	1320		1050	0.5452	21	450	1320	1900	0.5168
5	450	1320		1100	0.5435	22	450	1320	1950	0.5137
6	450	1320		1150	0.5446	23	450	1320	2000	0.5099
7	450	1320		1200	0.5455	24	450	1320	2050	0.5066
8	450	1320		1250	0.5427	25	450	1320	2100	0.5027
9	450	1320		1300	0.5425	26	450	1320	2100	0.4952
10	450	1320		1350	0.5407	27	450	1320	2100	0.4889
11	450	1320		1400	0.5368	28	450	1320	2100	0.4831
12	450	1320		1450	0.5383	29	450	1320	2100	0.4771
13	450	1320		1500	0.5373	30	350	1320	2100	0.576
14	450	1320		1550	0.5342	31	400	1320	2100	0.538
15	450	1320		1600	0.5342	32	450	1320	2100	0.5027
16	450	1320		1650	0.5298	33	500	1320	2100	0.4704
17	450	1320		1700	0.5315	34	550	1320	2100	0.4415
R = 165 mm, r = 109 mm; l1 = 1683 mm; l2 = 469 mm.
