SECTION C
Factors From Finite Areas to Finite Areas

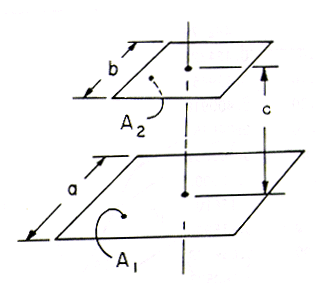

C-12: Coaxial, parallel squares of different edge length.

Reference: Crawford; Camaraza-Medina, Hernandez-Guerrero, and Luviano-Ortiz, 2022

Definitions: A = a/c; B = b/a; X = A(1 + B); Y = A(1-B)

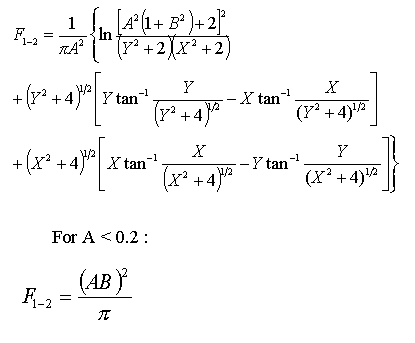

Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.
