SECTION C
      Factors From Finite Areas to Finite Areas

      C-112a: Frustum of right circular cone to base with obstruction by coaxial internal cylinder.



        Reference: Katte (2000)

        Definitions:


        ξ= L/r1; NR= r2/r1

        Graphical Results:

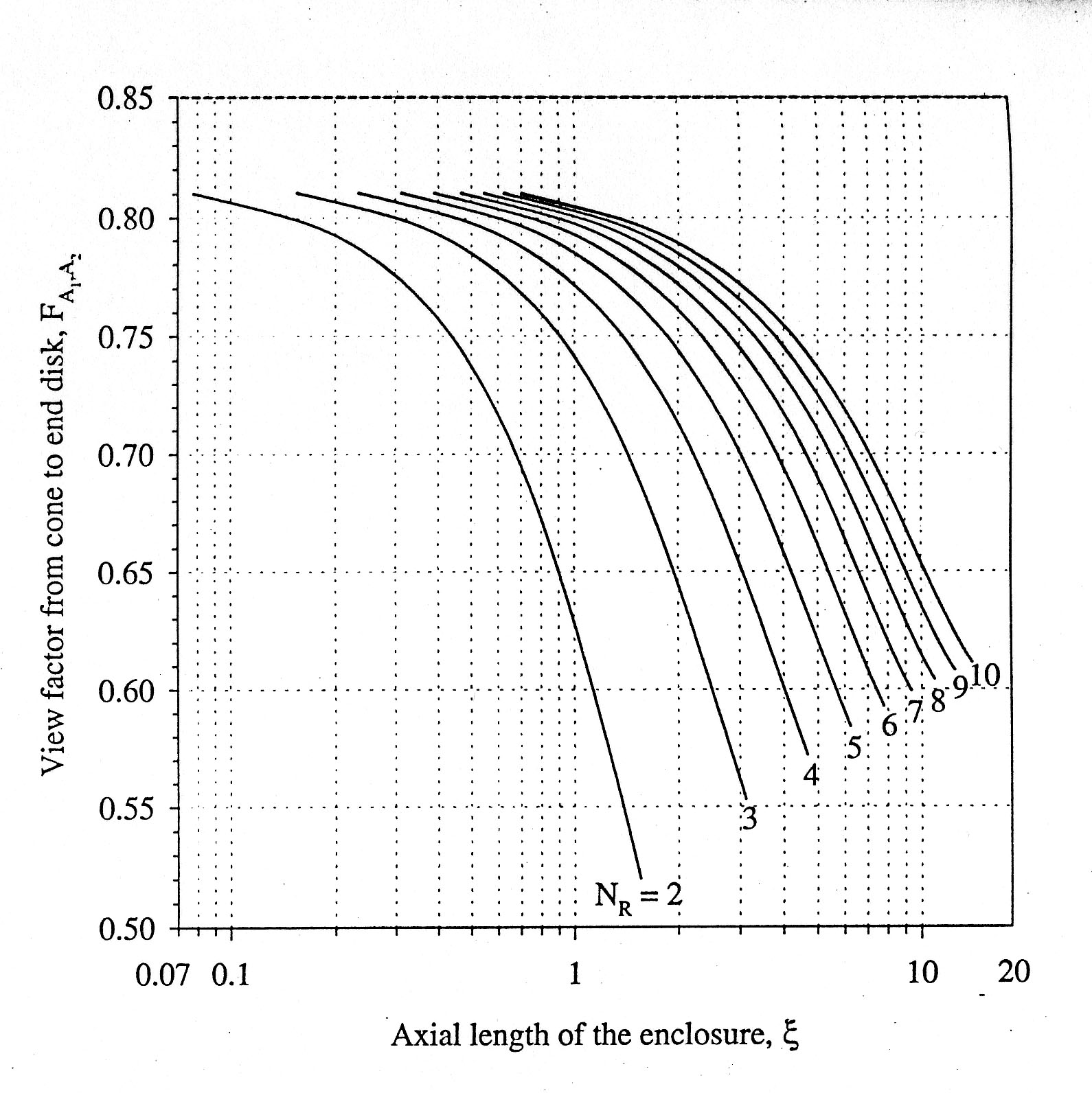

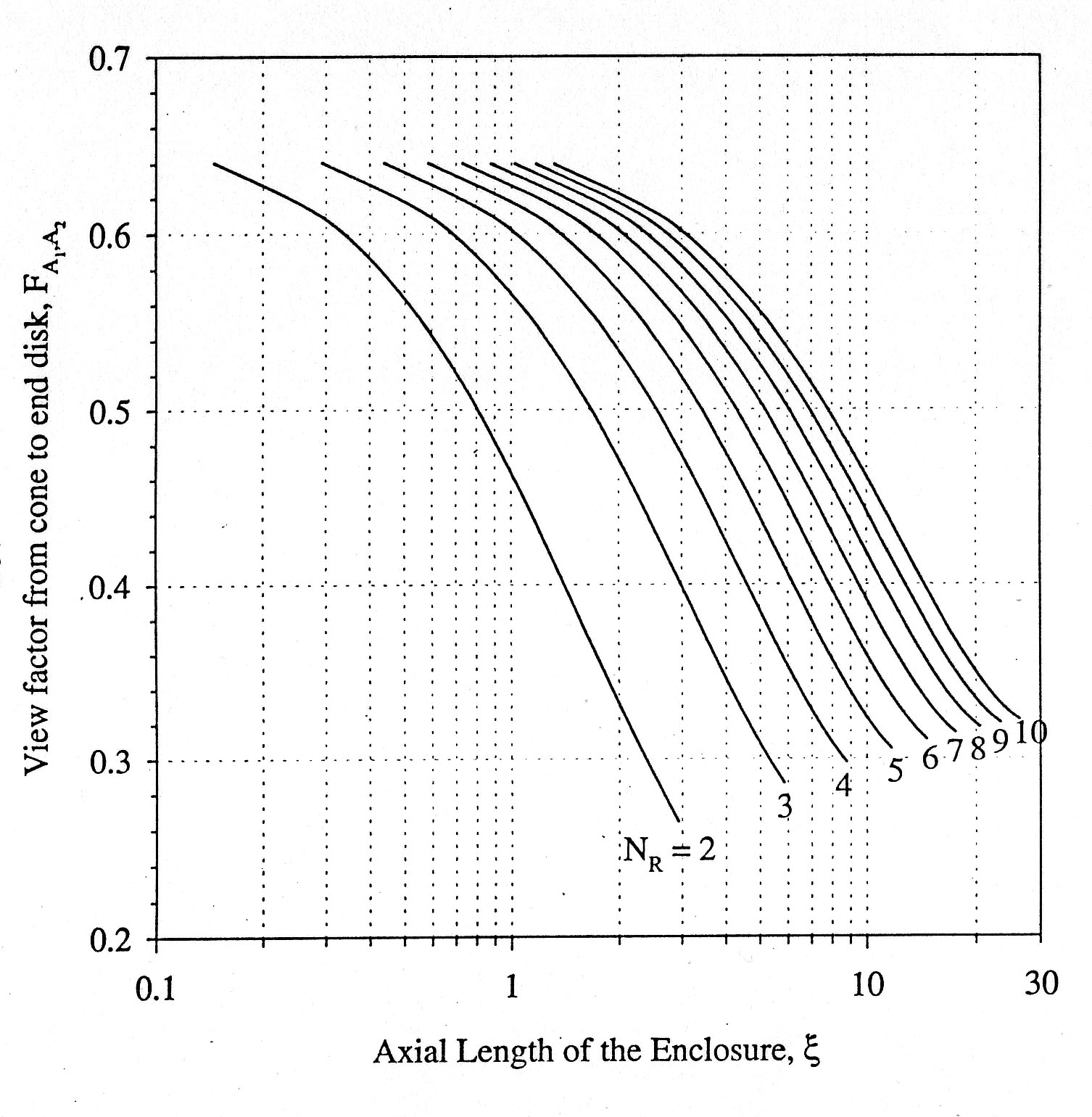

                  β = 20 degrees                        β = 40 degrees

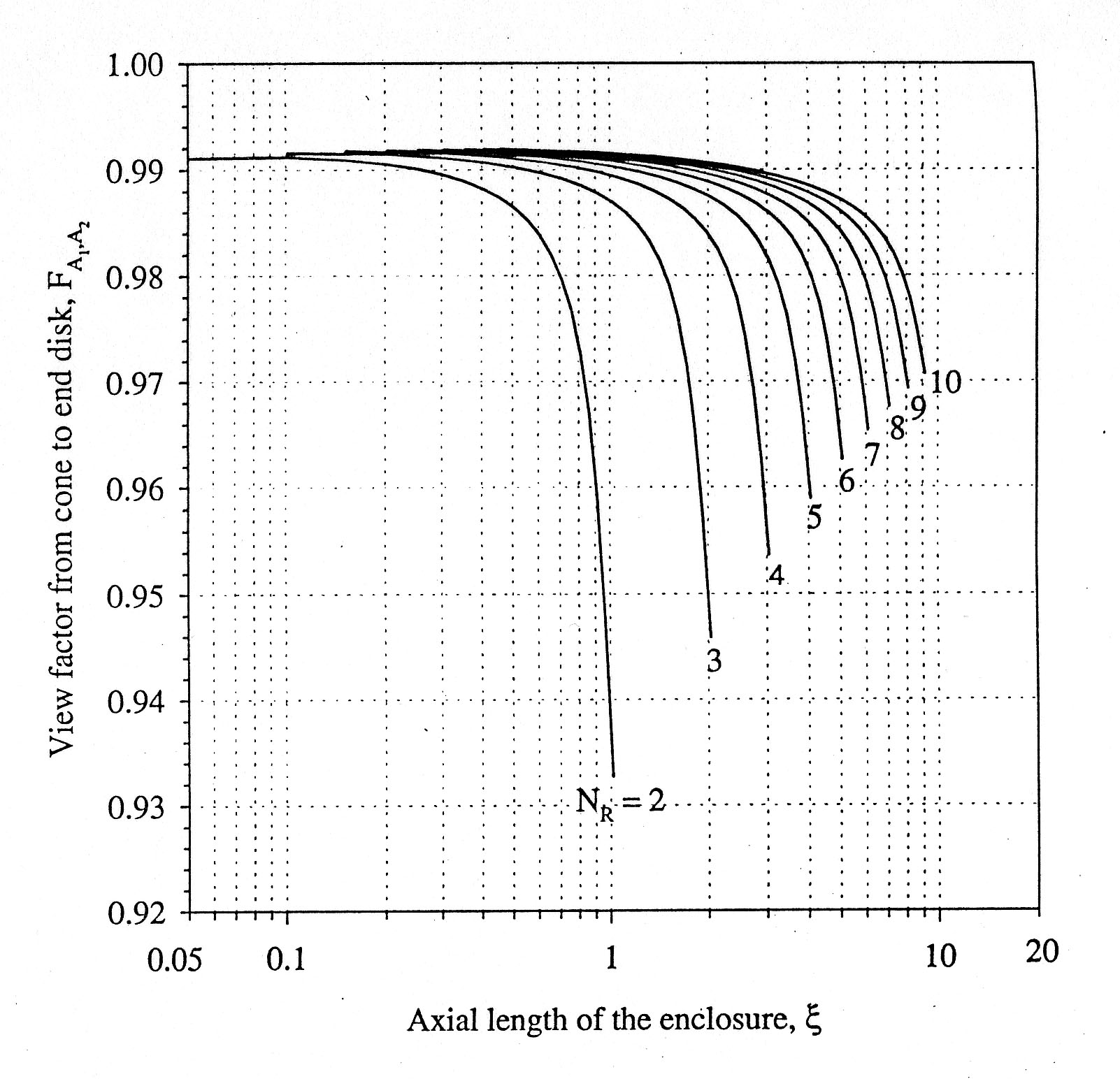

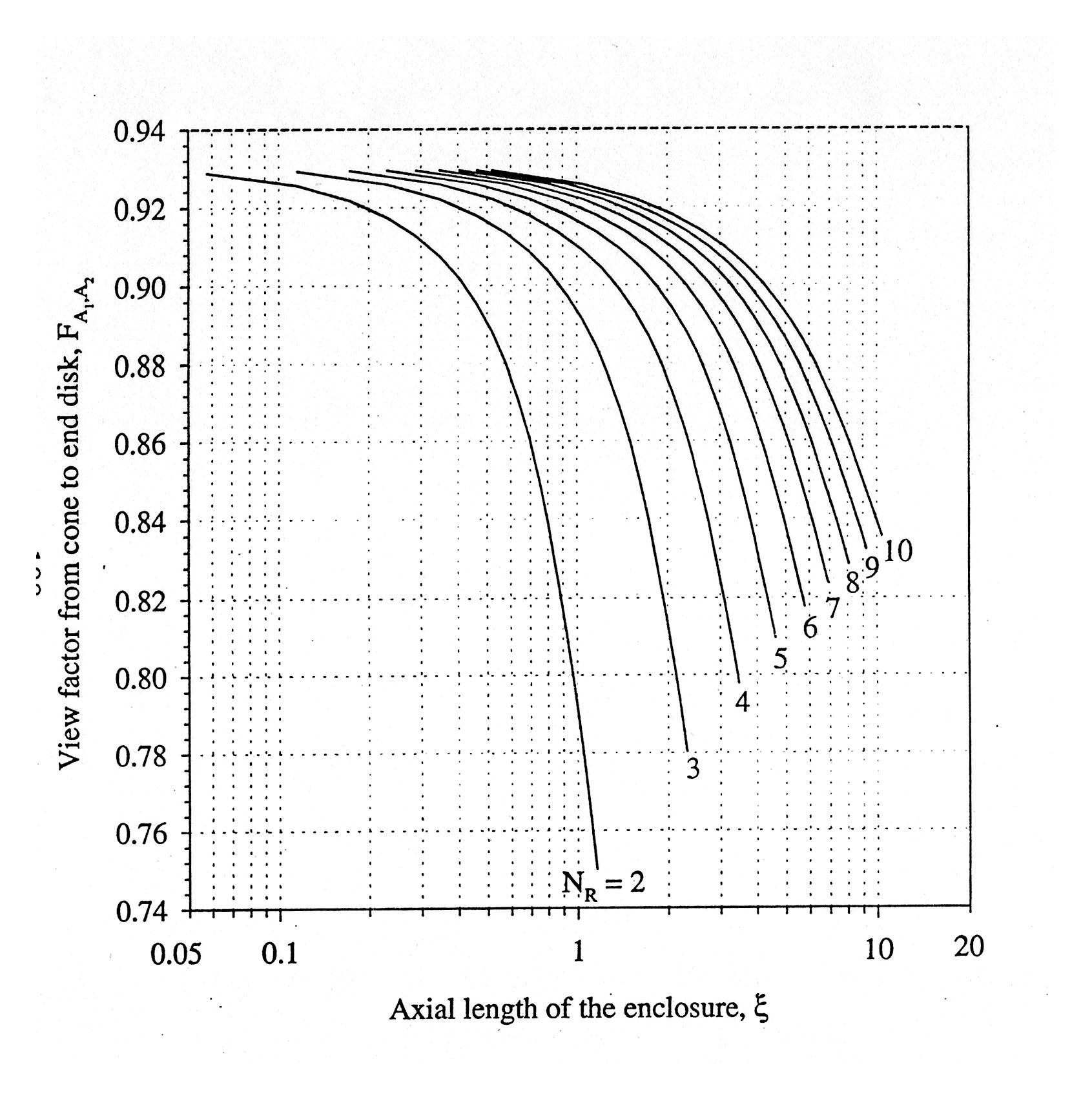

            β = 60 degrees                         β = 80 degrees
