SECTION C
      Factors From Finite Areas to Finite Areas

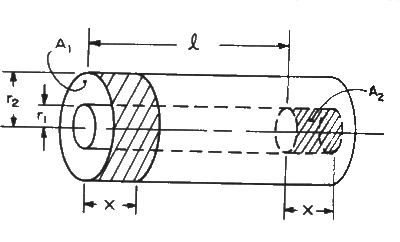

      C-100: Between cylindrical area on interior of shell and equal length cylindrical area on exterior of inner coaxial cylinder.



        Reference: Reid and Tennant

        Definitions:

        R = r2/r1;
        L = l/x
        X = x/r1

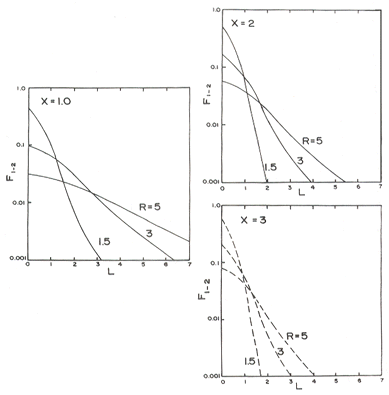

        Graphical Results:
