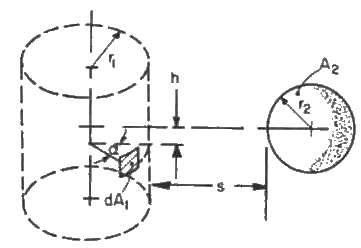

B-61: Element on surface of cylinder at longitude α to sphere; axis of sphere bisects and is normal to cylinder axis.

Reference: Juul, 1979

Definitions:
H=h/r₂ R=r₁/r₂

S=s/r₂ Z=1+S+R(1-cosα)

u=Z²+H²+R²(1-cos²α) r=Zcosα-Rsin²α

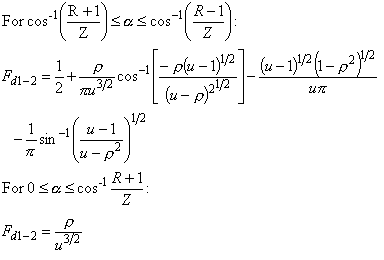

Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.

H=h/r₂	R=r₁/r₂
S=s/r₂	Z=1+S+R(1-cosα)
u=Z²+H²+R²(1-cos²α)	r=Zcosα-Rsin²α
