SECTION B
Factors From Differential Elements to Finite Areas

B-29c: Planar element d1 on interior cylinder surface to finite segment A2 on cylinder end.

 Reference: Revanna and Katte, 2022

Diagram, engineering drawing Description automatically generated

Definitions: 𝑋1=𝐿1∕𝑅, R1=a1∕𝑅, R2=a2∕𝑅, 𝑋4=𝐿4∕𝑅, 𝐶1 = (𝑋4 − 𝑋1)2 and 𝐶2 = (𝑋3 − 𝑋1)2

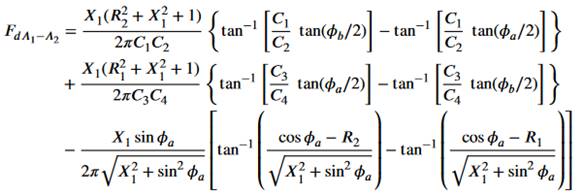

Governing equation:

Text Description automatically generated

Text Description automatically generated with low confidence





To download a copy of this equation in MS Word 97 Format, click HERE.
