SECTION B
Factors From Differential Elements to Finite Areas

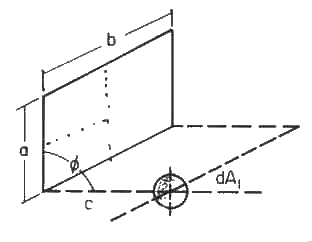

B-106: Spherical point source to plane rectangle. Point source lies on corner of adjacent rectangle with common side and intersecting A₂ at angle Φ. (Corrected from original text.)

Reference: Hamilton and Morgan, 1956

Definitions: A=a/c; B=b/c

Governing equation:

To download a copy of this equation in MS Word 97 Format, click HERE.
