SECTION A
      Factors Between Differential Elements

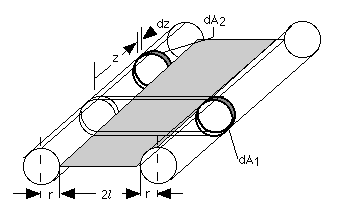

      A-22: Differential ring on surface of right circular cylinder to differential ring on parallel cylinder of the same diameter. Cylinders are connected through axes by thin parallel plate of width 2l.



        Reference: Sparrow and Jonsson, 1963a

        Definitions: Z=z/l; L=l/r

        Tabular Results:

        LdFd1-d2/dZ L dFd1-d2/dZ
        0.010.0259580.50.040164
        0.02 0.0342121.0 0.029172
        0.05 0.0444932.00.018593
        0.1 0.0491845.00.008859
        0.2 0.04911910.00.004729
