SECTION C
      Factors From Finite Areas to Finite Areas

      C-39: Circular disk to parallel right triangle; normal from center of circle passes through one acute vertex.

        Reference: Tripp, Wang and Grant

        Definitions: X=r/d; Y=d/l1; Z=d/l2

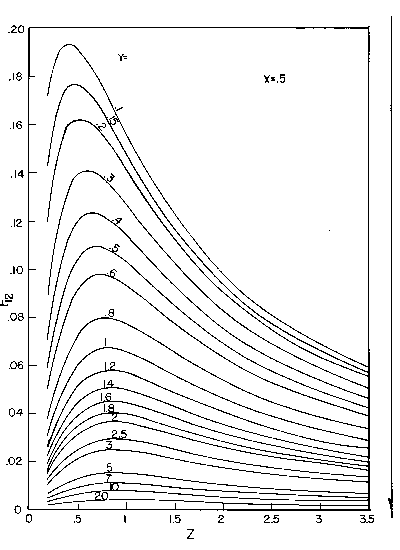

        Graphical Results for X = 0.5:


        To Return to C-39 home, click HERE

        For X = 0.0, click HERE

        For X = 0.25, click HERE

        For X = 0.75, click HERE
