SECTION C
Factors From Finite Areas to Finite Areas

---

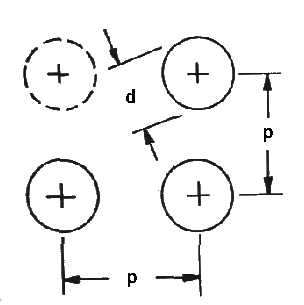

C-72: Infinitely long cylinder to other cylinders in square array of parallel cylinders of equal diameter.



Reference: Cox; See also Tseng and Strieder.

Definitions:


P = p/d

Tabular Results:



P	F1-2	F1-3	F1-5	F1-8	ERROR	F1-8*
1.00	0.18169	0.06831	0.00000	0.00000	0.00000	0.00000
1.05	0.16906	0.07803	0.00136	0.00006	0.00025	0.00009
1.10	0.15895	0.08337	0.00350	0.00023	0.00095	0.00034
1.15	0.15031	0.08632	0.00596	0.00047	0.00203	0.00073
1.20	0.14274	0.08760	0.00861	0.00079	0.00344	0.00122
1.25	0.13601	0.08760	0.01140	0.00116	0.00514	0.00180
1.30	0.12997	0.08659	0.01427	0.00157	0.00708	0.00246
1.35	0.12449	0.08475	0.01720	0.00203	0.00924	0.00318
1.40	0.11949	0.08221	0.02018	0.00251	0.01159	0.00396
1.45	0.11491	0.07927	0.02308	0.00303	0.01438	0.00483
1.50	0.11070	0.07652	0.02554	0.00358	0.01823	0.00585
1.55	0.10679	0.07395	0.02761	0.00414	0.02304	0.00702
1.60	0.10317	0.07156	0.02932	0.00472	0.02870	0.00831
1.65	0.09980	0.06931	0.03073	0.00533	0.03510	0.00971
1.70	0.09665	0.06721	0.03185	0.00594	0.04216	0.01122
1.75	0.09371	0.06523	0.03273	0.00658	0.04982	0.01280
1.80	0.09094	0.06337	0.03337	0.00722	0.05801	0.01447
1.85	0.08834	0.06161	0.03382	0.00788	0.06669	0.01621
1.90	0.08588	0.05995	0.03407	0.00854	0.07580	0.01802
1.95	0.08357	0.05837	0.03415	0.00922	0.08531	0.01988
2.00	0.08138	0.05688	0.03407	0.00990	0.09518	0.02180

---
