SECTION C
      Factors From Finite Areas to Finite Areas

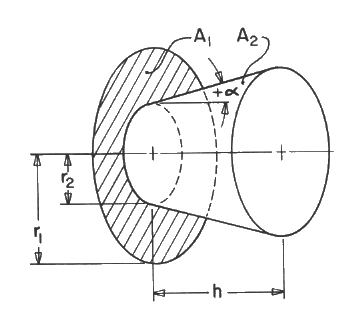

      C-49: Annular disk to coaxial truncated cone; cone can be convergent (+a) or divergent (-a).



        Reference: Naraghi and Chung

        Definitions:

        H = h/r1;  R = r2/r1;
        A = [H2 + (1 + R + Htana)2]1/2;
        B = [H2 + (1 - R - Htana)2]1/2;
        C = (1 - R)1/2;  D = (1 + R)1/2;  E = cos2a(1 - R2)

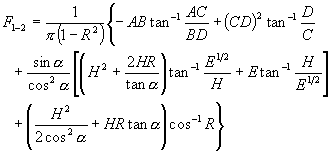

        Governing equation:

        To download a copy of this equation in MS Word 97 Format, click HERE.
