SECTION C
Factors From Finite Areas to Finite Areas

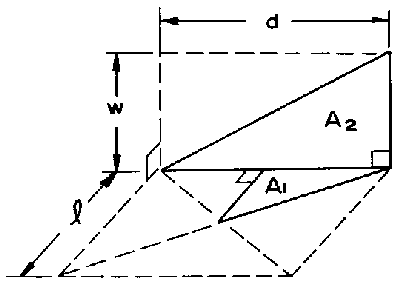

C-26: Right triangle to perpendicular right triangle of unequal size; apexes at opposite ends of shared edge.

Reference: Sauer

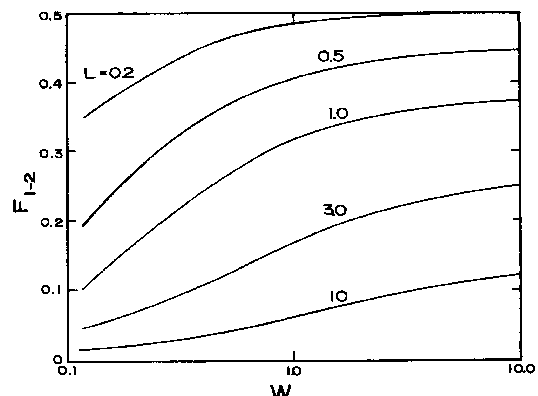

Definitions: L = l/d; W = w/d

Reprinted by permission. American Society of Heating, Refrigerating, and Air-Conditioning Engineers, Inc.
