SECTION C
Factors From Finite Areas to Finite Areas

---

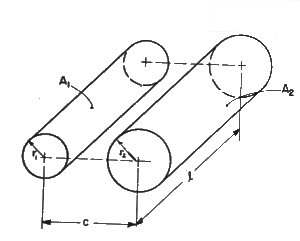

C-101: Parallel opposed cylinders of unequal radius and equal finite length.

Reference: Juul (1982)

Definitions:

R = r₁/r₂; L = l/r₂; C = c/r₂

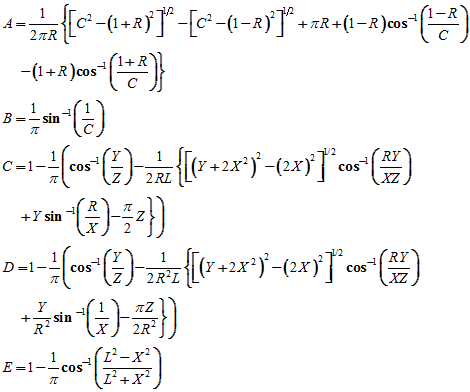

Governing Equations: Use A-E in regions noted on chart below

Tabulated Values are obtained by numerical integration.  The view factors in the blank regions may be calculated by the equations with an error less than 1%.

R	L	(C - R - 1) =
		0	0.5	1.0	2.0
0	0.5	0.500	0.1037	0.0446
	1.0		0.1526	0.0772
	5.0		F12 = B x E
	10.0
	50.0
.1	0.5	0.3453	0.0933	0.0415
	1.0		0.1387	0.0721
	5.0	F12 = A x C
	10.0
	50.0
1.0	0.5	0.1440	0.0517	0.0264
	1.0		F12 = A x C
	5.0
	10.0	0.1813
	50.0	0.1834
10.0	0.5	0.0233	0.0104	0.0062	0.0032
	1.0	0.0276	0.0167	0.0111	0.0062
	5.0	0.0344	0.0288	0.0246	0.0186
	10.0	F12 = A x D			0.0229
	50.0

---
