SECTION B
Factors From Differential Elements to Finite Areas

B-13: Differential tilted planar element dA₁ to disk A₂. Element lies on normal to disk passing through disk center.

Reference: Naraghi and Chung, 1982; Naraghi, 1981.

Definitions: H=h/r; X=(1-H²cot²θ)^1/2

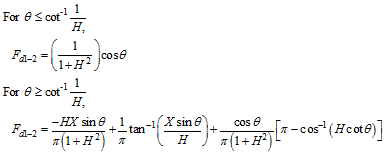

Governing equation:
